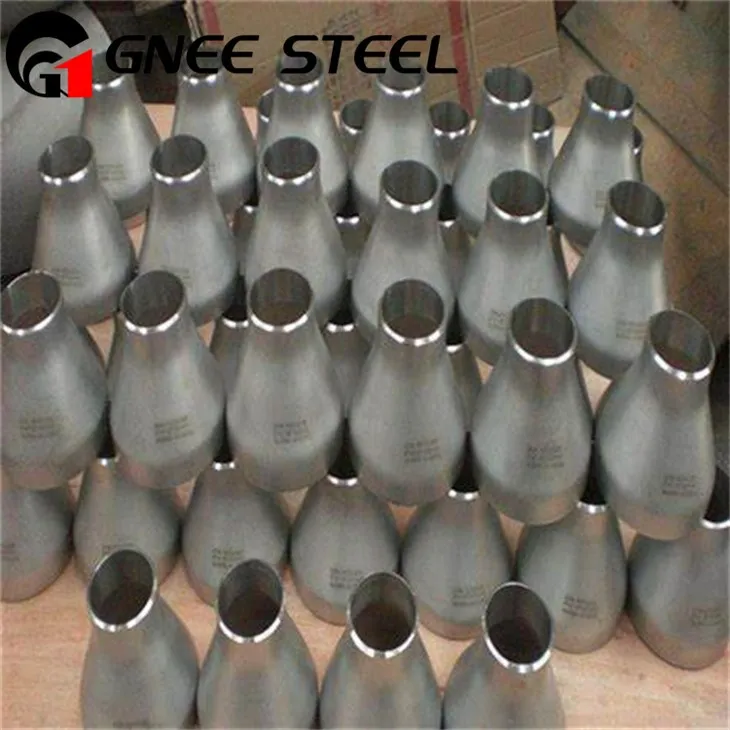

Inconel Alloy 601 Fittings tiyo
marinated
Polisaj
Polisaj glas
Fini klere
Recuit
Kòm yon founisè dirijan ak manifakti nan Lachin, GNEE Steel bay pri -nikèl-efikas pwodwi alyaj ki baze sou.
- Voye imèl -:ss@gneesteel.com
- Tel:+8615824687445
Inconel Alloy 601 Fittings tiyodeskripsyon
GNEE Inconel Alloy 601 Fittings tiyo
Fittings tiyo Inconel Alloy 601 yo fèt ak yon alyaj nikèl-chromium-fè li te ye pou rezistans ekselan nan oksidasyon tanperati ki wo-, bon fòs mekanik, ak rezistans nan korozyon akeuz. Karakteristik prensipal yo enkli itilizasyon yo nan aplikasyon pou tanperati ki wo tankou gwo founo dife ak turbin gaz, konvnab yo pou soude ak fòme, ak disponiblite divès kalite ekipman tankou koud, tees, ak redukteur. Enstalasyon apwopriye ak antretyen yo enpòtan anpil pou asire efikasite alontèm-.
Inconel Alloy 601 tiyo Fittings Spesifikasyon
| Espesifikasyon | ASTM B366 / ASME SB366 |
|---|---|
| Klas | Inconel 601 |
| Dimansyon | ASME/ANSI B16.9 |
| Gwosè | 1/8" NB pou 28" NB |
| Kalite | San pwoblèm, soude, fabrike |
| Reyon koube | R=1D, 2D, 3D, 5D, 6D, 8D, 10D oswa Custom |
| Epesè miray la | Sch 5s, 10s, 40s, 80s, 160s, XXS oswa Custom (jiska 50 MM) |
Inconel Alloy 601 tiyo Fittings Spesifikasyon
Konpozisyon chimik Inconel 601 Fittings
| Eleman | Pwa (%) |
|---|---|
| Nikèl (Ni) | 58.0 - 63.0 |
| Kwòm (Cr) | 21.0 - 25.0 |
| Fè (Fe) | Balans |
| Kabòn (C) | max. 0.10 |
| Manganèz (Mn) | max. 1.0 |
| Silisyòm (Si) | max. 0.50 |
| Souf (S) | max. 0.015 |
| Kwiv (Cu) | max. 1.0 |
| Aliminyòm (Al) | 1.0 - 1.7 |
Pwopriyete mekanik UNS N06601 Fittings
| Pwopriyete | Valè |
|---|---|
| Dansite | 8.1 g / cm³ |
| Pwen k ap fonn | 1411 degre (2571 degre F) |
| Fòs rupture | 550 MPa (80,000 psi) min |
| Sede fòs | 205 MPa (30,000 psi) min |
| Elongasyon | 30% min |
| Dite (Brinell) | 130 HB |
Pwopriyete Fizik Inconel 601 Weld Fittings
| Pwopriyete | Valè | |
|---|---|---|
| Ranje k ap fonn | degre F | 2480-2571 |
| degre | 1360-1411 | |
| Espesifik Chalè | 70 degre F, Btu/lb- degre F | 0.107 |
| 21 degre, J/kg- degre | 448 | |
| Dansite | lb/pous³ | 0.293 |
| Mg/m³ | 8.11 | |
| Pèmeyabilite | 200 oersted (15.9 kA/m) | |
| 76 degre F (24 degre) | 1.003 | |
| -109 degre F (-78 degre) | 1.004 | |
| -320 degre F (-196 degre) | 1.016 | |
| Tanperati Curie | degre F | <-320 |
| degre | <-196 | |
Inconel 601 Tee Tanperati Range
| Ranje Tanperati | |
|---|---|
| degre C | degre F |
| 870 - 1230 | 1600 - 2250 |
Tablo pwa alyaj 600 Fittings
| OD (mm) | WT tiyo (mm) | SCH |
|---|---|---|
| 13.72 | 1.65 | 10S |
| 17.15 | 3.20 | 80S |
| 21.34 | 2.11 | 10S |
| 42.16 | 2.77 | 160 |
| 13.72 | 2.24 | 40S |
| 21.34 | 2.77 | 40S |
| 168.28 | 18.26 | 160 |
| 219.08 | 18.23 | 120 |
| 33.40 | 3.38 | 40S |
| 42.16 | 2.77 | 10S |
| 48.26 | 3.68 | 40S |
| 60.33 | 8.74 | 160 |
| 73.03 | 5.16 | 40S |
| 114.30 | 3.05 | 10S |
| 73.03 | 3.05 | 10S |
| 88.90 | 5.49 | 40S |
| 219.08 | 12.78 | 80S |
| 101.60 | 5.74 | 40S |
Alloy 601 Buttweld Fittings Sizes
| Fòm tiyo Fttings | Tiyo Fitting Size Range | Orè nan ekipman soude bou yo | Estanda Dimansyon | |
|---|---|---|---|---|
| Fittings tiyo san pwoblèm | Fittings tiyo soude | |||
| Inconel Return Bends | 1/8" NB pou 8" NB | SCH 5, SCH 5S, SCH 10, SCH 10S, SCH 20, SCH 30, SCH 40S, SCH 40, SCH STD, SCH 60, SCH 80s, SCH 100, SCH 120, SCH XS, SCH XXS, SCH 160 mm, jiska 160 mm | ASME B16.9, ANSI B16.9, ASME B16.28, ANSI B16.28, ANSI B16.25, MS SP 75 | |
| Sou entènèt jwèt Inconel Tees | 1/8" NB pou 24" NB | Jiska 42" NB | ||
| Enkonèl redukteur | 1/8" NB pou 24" NB | Jiska 42" NB | ||
| Inconel End Caps | 1/8" NB pou 24" NB | Jiska 42" NB | ||
| Inconel Swage pwent tete | 2 1/16" pou 30" | |||
| Koud Inconel - 45, 90 & 180 Degre | 1/8" NB pou 24" NB | Jiska 42" NB | ||
| Lakwa Inconel | 1/8" NB pou 8" NB | |||
Dimansyon tiyo koud Inconel 601
| Pwa (Kg) | Dimansyon (mm) |
|---|---|
| 18.0 | 2.0 X 1219 X 3048 |
| 10.8 | 1.2 X 1219 X 3048 |
| 8.1 | 0.9 X 1219 X 3048 |
| 6.3 | 0.7 X 1219 X 3048 |
| 28.6 | 3.18 X DIVERS ANN |
| 27.0 | 3 X 1200 X 3000 |
| 14.4 | 1.6 X 1200 X 3048 |
| 4.5 | 0.5 X 1000 X 2000 |
Werkstoff NR. 2.4851 Tablo pwa bout bout
| NPS | Pwa | W.T | O.D | ||
|---|---|---|---|---|---|
| Lb/pye | nan | mm | nan | mm | |
| 3 | 7.576 | 0.216 | 5.486 | 3.500 | 89 |
| 10.253 | 0.300 | 7.620 | |||
| 1 1/2 | 2.718 | 0.145 | 3.683 | 1.900 | 48 |
| 3.361 | 0.200 | 5.080 | |||
| 1 | 1.679 | 0.133 | 3.378 | 1.315 | 33 |
| 2.172 | 0.179 | 4.547 | |||
| 3/4 | 1.131 | 0.113 | 2.870 | 1.050 | 27 |
| 1.474 | 0.154 | 3.912 | |||
| 1/2 | 0.851 | 0.109 | 2.769 | 0.840 | 21 |
| 1.088 | 0.147 | 3.734 | |||
| 2 | 3.653 | 0.154 | 3.912 | 2.375 | 60 |
| 5.022 | 0.218 | 5.537 | |||
| 1 1/4 | 2.273 | 0.140 | 3.556 | 1.660 | 42 |
| 2.997 | 0.191 | 4.851 | |||
| 2 1/2 | 5.793 | 0.203 | 5.516 | 2.875 | 73 |
| 7.661 | 0.276 | 7.010 | |||
Kalite Fittings Inconel 600 tiyo
Inconel 601 Tiyo Fittings Kalite
UNS N06601 Kout Reyon Retounen Bends
ASTM B366 UNS N06601 Kout koud tiyo reyon
NICR23FE Long Radiy Return Bends
Inconel 601 Diminye koud
WNR 2.4851 Kwa
ASTM B366 bout souch
Werkstoff NR. 2.4851 pwent tete
ASTM SB 366 Tee inegal
UNS N06601 Bouchon tiyo
ASTM B366 UNS N06601 redukteur konsantrik
NICR23FE Kolye tiyo Fittings
Inconel 601 Coupling
Pwosesis pwodiksyon Inconel Alloy 601 Pipe Fittings
Gnee Steel bay tretman chalè sa yo pou Inconel Alloy 601 tiyo Fittings: annealing, solisyon + aje. Anplis de sa, Gnee Steel tou bay travay cho ak travay frèt, ki se woule cho ak desen frèt.
Konsènan Gnee Steel
Gnee Steel espesyalize nan pwodiksyon ak vann divès kalite alyaj ki baze sou nikèl -, ki gen ladan nikèl 201, nikèl 202, Hastelloy C-276, Hastelloy C-22, Hastelloy B, Hastelloy C-4, Inconel Alloy 600, Inconel 625, Inconel 625, Inconel, Inconel71 800, Incoloy 800H/HT, Incoloy 825, Monel Alloy 400, Monel K500, ak alyaj wo-tanperati. Pwodwi Gnee Steel yo lajman itilize nan ayewospasyal, chimik, pouvwa elektrik, otomobil, ak aplikasyon pou enèji nikleyè. Nou ofri tou solisyon alyaj Customized adapte a bezwen kliyan yo. Pou demann pri alyaj oswa solisyon alyaj Customized, tanpri kontakte nou pou yon quote nanss@gneesteel.com.
