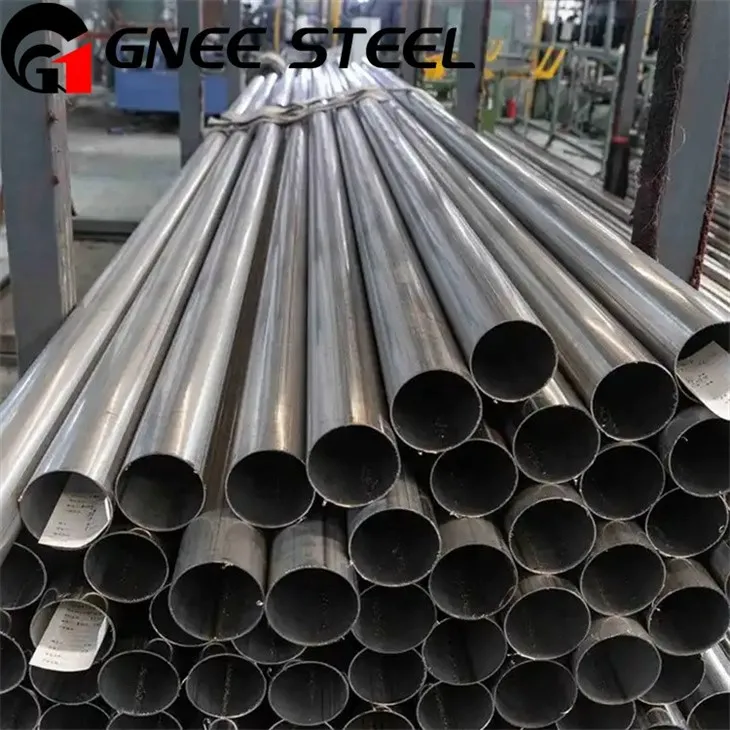

Ekipman pou incoloy 800h nikèl alyaj tiyo, incoloy uns n08810 manifakti

Deskripsyon & Non:Incoloy 800h 800ht alyaj nikèl

Creole:ASTM\/ASME B\/SB 163, ASTM\/ASME B\/SB407

Materyèl:Incoloy800\/800h\/800ht, 825, Inconel 600,601,625,617,690,693, Monel 400, Monel K500, Alloy20, Alloy28. Hastelloy C276, Al6XN, N08028 elatriye.

UNS N08800\/N08810\/N08811 konpozisyon chimik%%
Deziyasyon alyaj	Eleman	C	NI	Cr	Mn	Fe	sizo	CU	al	Tibèkil	S
Incoloy 800	Min. %	-	30	19	-	39.5	-	-	0.15	0.15	-
	Max. %	0.1	35	23	1.5	-	1	0.75	0.6	0.6	0.015
Incoloy800h	Min. %	0.05	30	19	-	39.5	-	-	0.15	0.15	-
	Max. %	0.1	35	23	1.5	-	1	0.75	0.6	0.6	0.015
Incoloy800ht	Min. %	0.06	30	19	-	39.5	-	-	0.15	0.15	-
	Max. %	0.1	35	23	1.5	-	1	0.75	0.6	0.6	0.015



Propeties mekanik		Incoloy 800	Incoloy 800h	Incoloy 800ht
Dansite:		7.9g\/cm3	7.9g\/cm3	7.9g\/cm3
Pwen k ap fonn:		1350-1400 degre C	1350-1400 degre C	1350-1400 degre C
Rupture fòs min. (MPa):		520	450	450
Sede fòs min. (MPa): 0. 2% konpanse		205	170	170
Elongasyon yon 5%(min.):		30	30	30
Rockwell Dite Max.:		B95	B95	B95

Produi	Epesè	Dyamèt	Epesè miray	Lajè	Longè
Asyèt	0. 3mm -30 mm			1m/1.22m/1.5m	1m-11.8m
Baro		2mm -300 mm			1m-5m
Pip		6mm -406 mm	0. 3mm -30 mm
Fò	30mm -300 mm	300mm -800 mm			0.2m-1m
